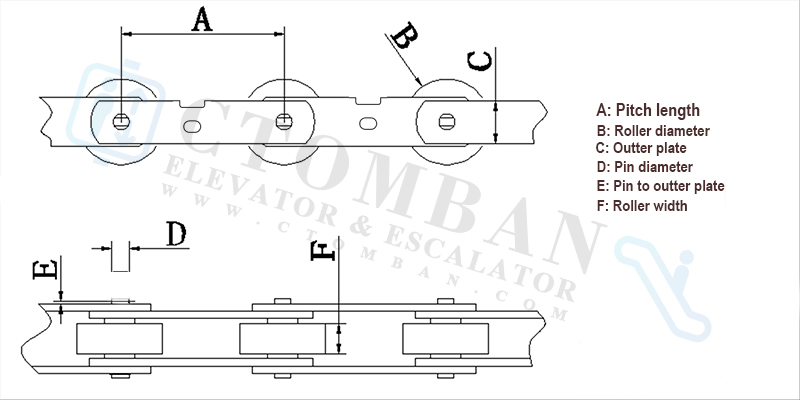

| # type | Pitch length mm |
Roller Diameter mm |
Roller Width mm |
Inner plate H mm |
Outer plate H mm |
Pin Diameter mm |
Flat Pin head to outter plate mm | Roller Type |
| CTB-RC-CNSC133752514P | 133.33 | 75 | 25 | 40 | 40 | 12.7 | / | PU |
Note : the Quotation of forma is based on Steps quantity (included right and left chain ) |
||||||||
| Product Name | Escalator/Travelator step chain |
| Model | |
|
Quality
MOQ pc |
Brand New And Original >1 |
| Application | US brand escalator, European brand escalator, Japan brand escalator, China brand escalator, other brand escalator, |
| Delivery | 07-15 Working Days After Received The Payment |
| Packaging | Packed by carton ,plywood case , or on request |
| Tomlu: +86 1877 2585 913 | |
|
How to Verify the Specification of spare parts ; |
|
| First Step | :Client provide Pictures of Spare Parts |
| Second Step | :Client provide Pictures of Controller Pate Number |
| Third Step | :Client provide Size Or Series Number of Spare parts |
| Deilver Optional | Deliver Time | Deliver Service | Client Provide |
| DHL / FedEx | 3-5 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| UPS / TNT | 5-10 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| EMS | 10-15 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| AIR | 5-8 Workding Days | Factory to Airport | Client Airport Name |
| SEA | 25-45 Workding Days | Factory to Airport | Client Seaport Name |
