Elevator Display PCB shows the situation / information when elevator is working up/down
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.
Elevator Display Specication
Monarch 6.4 inch Indicator MCTC-HCB-V5G
Overview

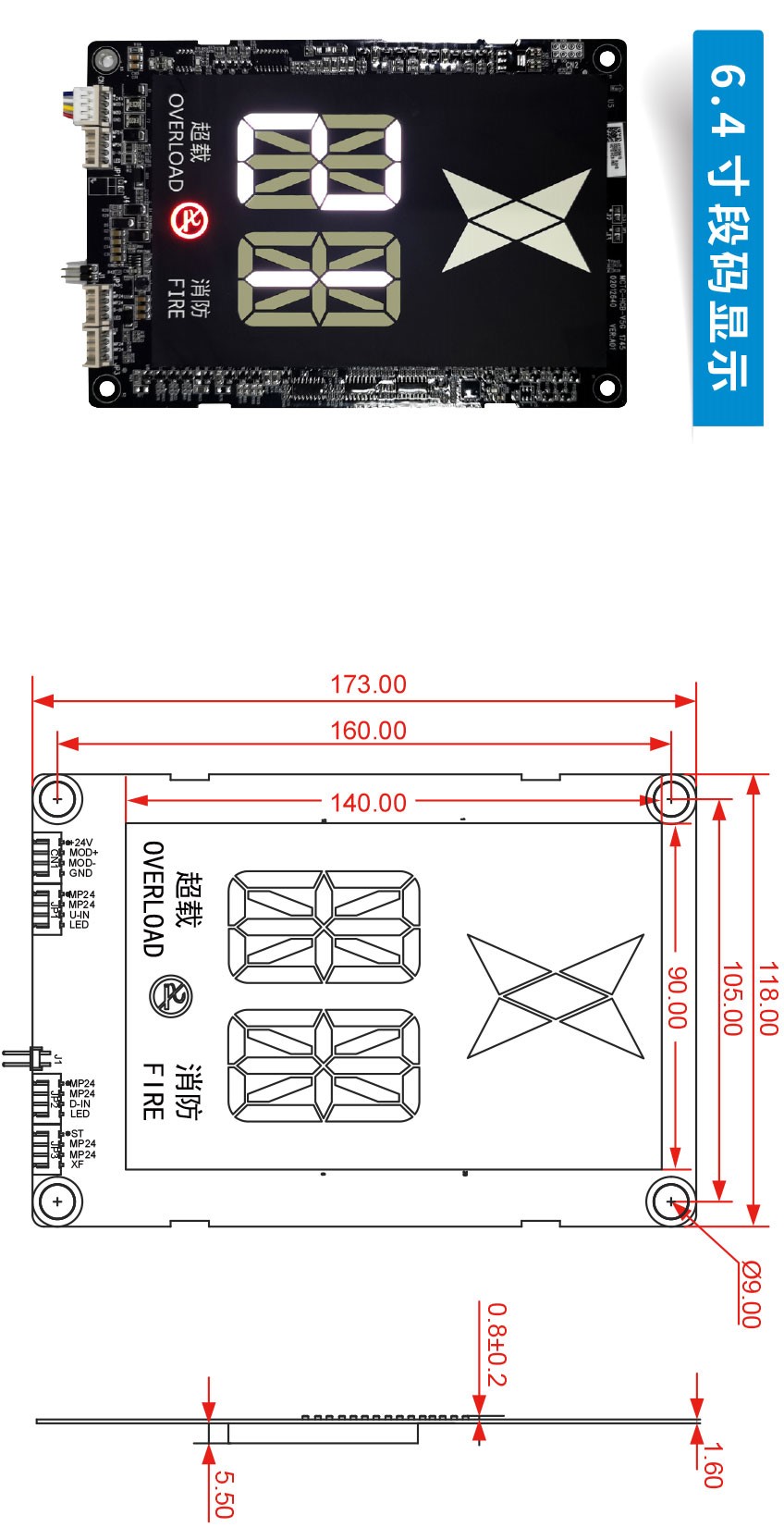

■ Dimensions: as drawing mm
■ Ultrathin segment vertical display, white character in black background
■ Up/Down call button input, elevator lock and fire emergency input; up/
down button indicator output
■ Floor address setting button, 56 floors supported
■ Flash on arrival
■ 3-digit floor number display "2-digit number+A/E/F/H/L/U/P/S/-"
■ Over- and full-load state are indicated both in Chinese and English: " 满
载 " and "Full Load". Inspection state is indicated both in Chinese and
English: " 检修 " and "Out of Service".
■ Elevator locking state is not displayed.
■ "INS+floor number" in scrolling display at inspection, overload icon
on the left lit at full load/overload
■ Fault code displayed and block blinking at fault, "FIRE" in scrolling
display at fire emergency
■ "VIP+floor number" in scrolling display in VIP state
