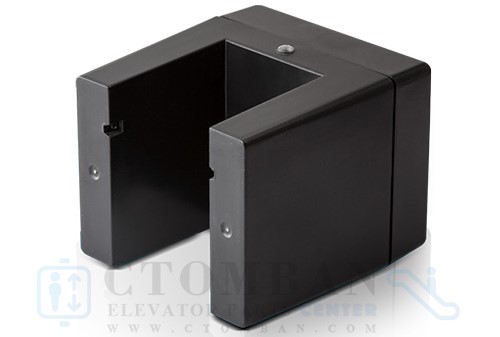

Elevator Magnetic Door Zoon Sensor applies to leveling inductor device，it is normally open monostable,switching value signal output magnetic switch. It uses to flat signal collection of the elevator.
Customers check its function and parameters in accordance with its specification and type to ensure its performance matching with the elevator actual state.

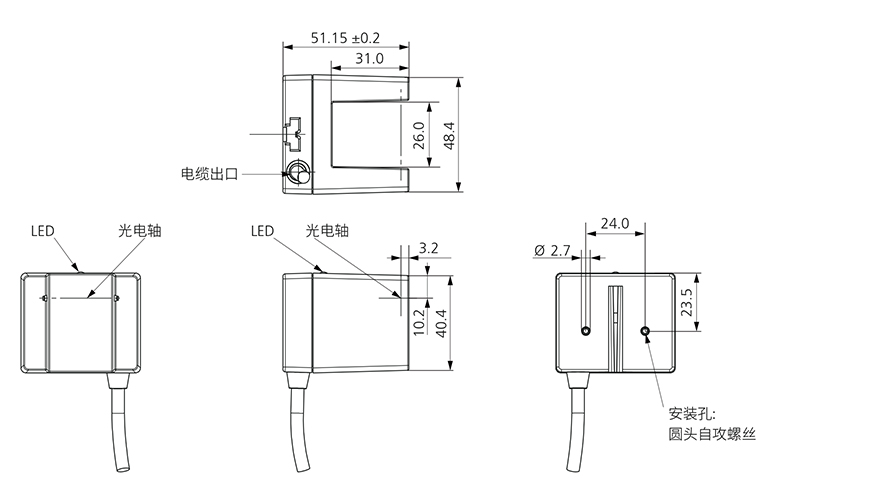

Elevator Magnetic Door Zoon Sensor Specification
Main Features
| Type | P48F26R |
| Distance | 26mm |
| Response Frequency | <=1100Hz |
| infrared Ray | 850nm |
| Supply voltage | 24DC-+20% |
| Output voltage | 200mA.NO/NC |
| Led indication | output state / Power On |
| Reverse Power | power protection/short circuit protection |
| Cable | connection |
| Protection | IP65 |
