Permanent Magnet Synchronous Door Motors
| Model |
BM14743 |

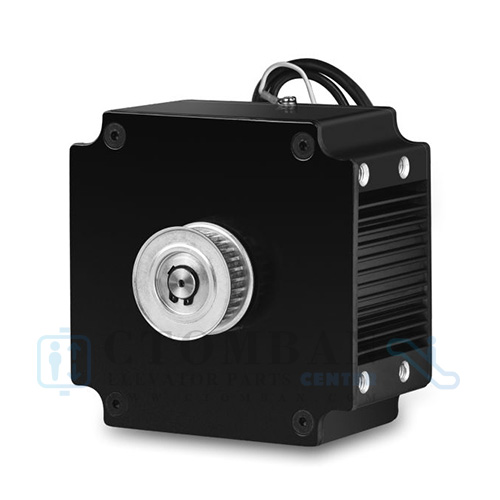

BM14794 |
BM14794-2 |

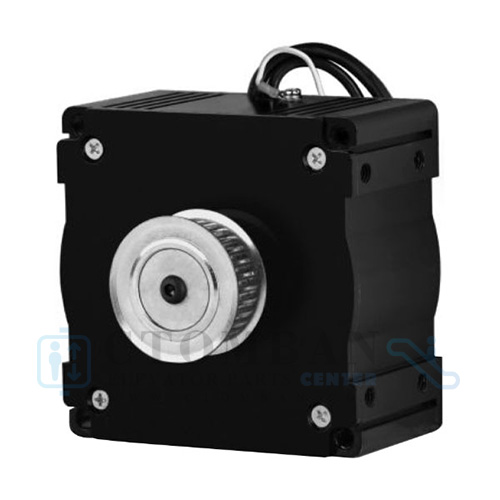

PM42472 |

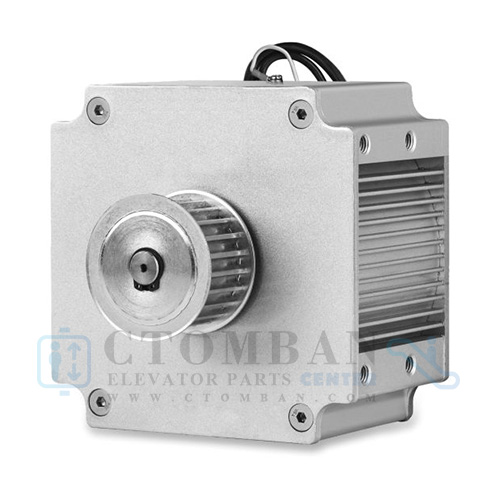

| Foto |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Size mm |
148*150*90 |
148*150*103 |
148*150*126 |
120*120*87 |
| Rated Voltage |
58 |
85 |
102 |
127 |
| Rated Current A |
0.7 |
1.1 |
1.3 |
0.4 |
| Rated Wat W |
43 |
94 |
140 |
47 |
| Rated Torque N.M |
2.3 |
5 |
7.5 |
2.3 |
| Rated Speed rpm |
180 |
| Rated Fre hz |
12 |
12 |
12 |
13 |
| Poles |
8 |
8 |
8 |
8 |
| Workings Type |
40%(S3 on 6s off 9s ) |
| Classifed IP |
IP65 |
| Insulation Grade |
F |
| Encoder type |
A/B/C/D/E/H |
| Sprocket |
Teeth Type |
5M |
| Teeth Number |
28 |
22 |
28 |
| Teeth Width mm |
17 |
33 |
17 |
| Configure sprocket belt |
HTD50-16 , HTD5M-26 , HTD8M-22 |
| Character |
High efficiency, Multi-directional instalation , Dustproof oil proof, High temperature resistance,
long life, F grage insulation grade, IP65 protection grade |
| Insulation Resistance |
>=100mΩ (cold) |
| Pressure Resistance |
1500V, 1min No breakdown |
| No-load noise value |
<=48dB |
| Unload Level & Vertical V |
<=0.45mm/s |
| Cooperated Client |
THYSSEN. OTIS.WITTUR. XIZI. VEGA. SYNEY. KONNY,FUJITEC, MIDEA, BST |

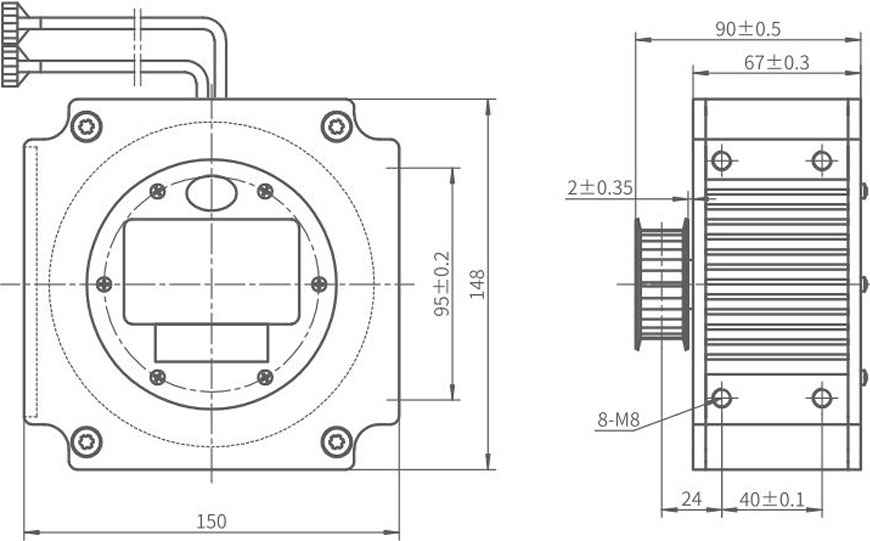

| BM14743 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

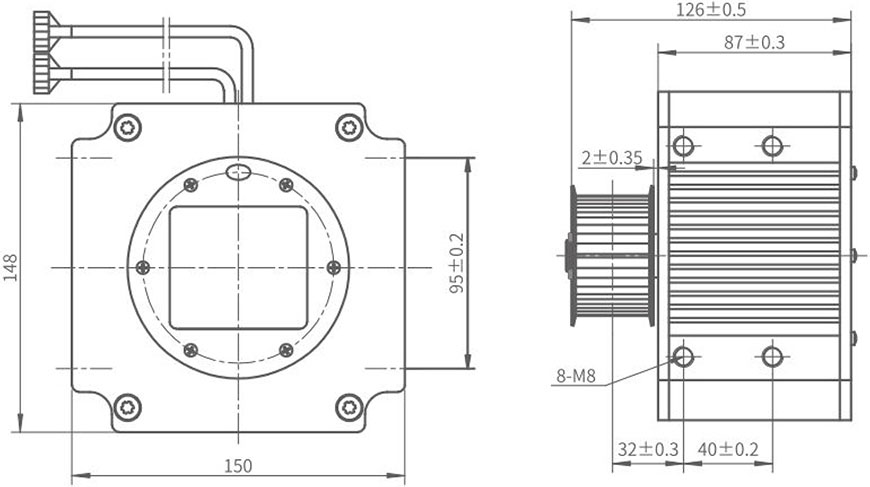

| BM14794 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

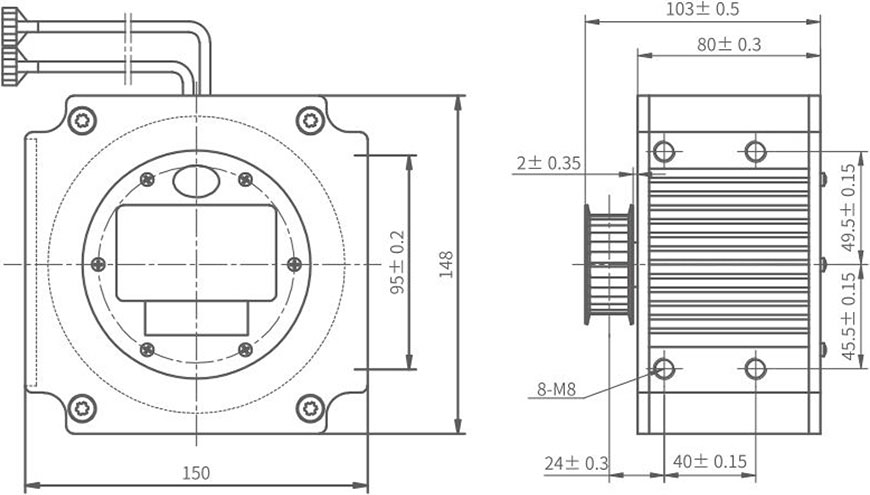

| BM14794-2 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

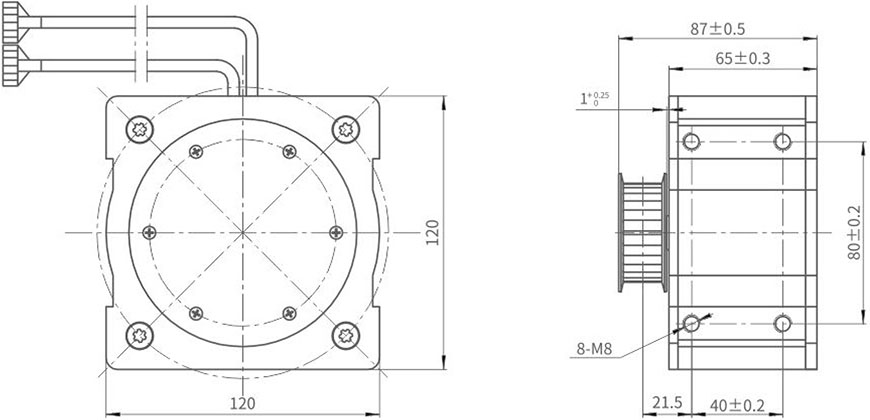

| PM42472 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
