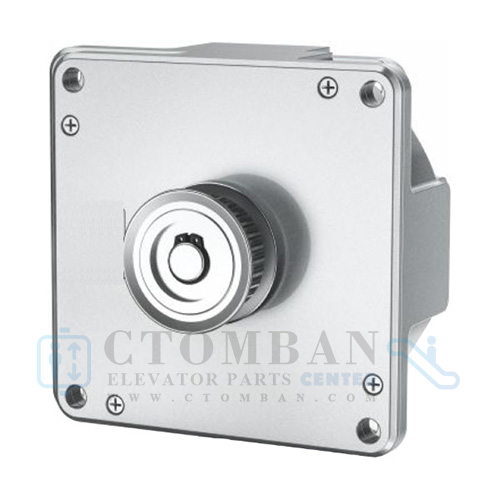

Permanent Magnet Synchronous Door Motors
| Model |

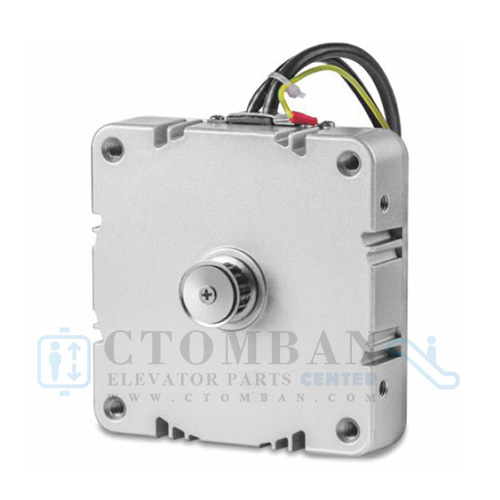

PM5182027B |

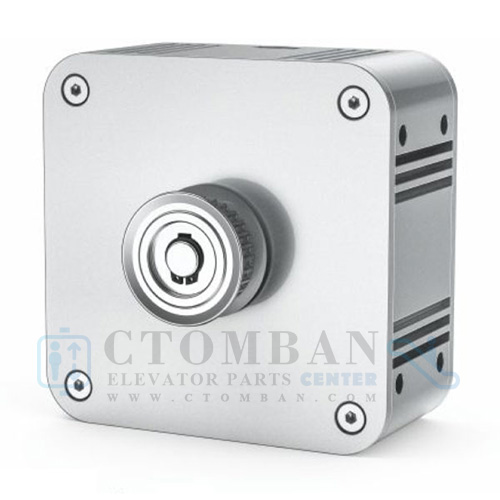

PM6181657 |

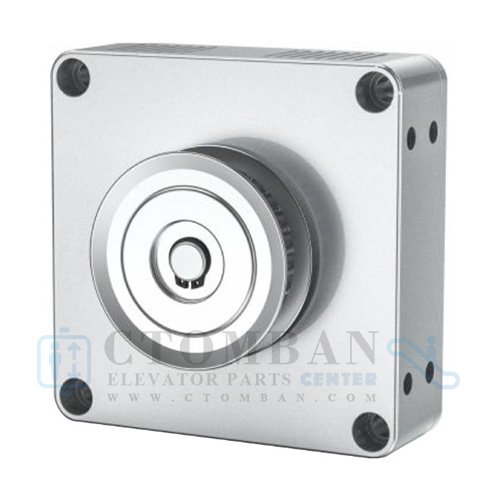

PM5182047 |
PM5182056D |

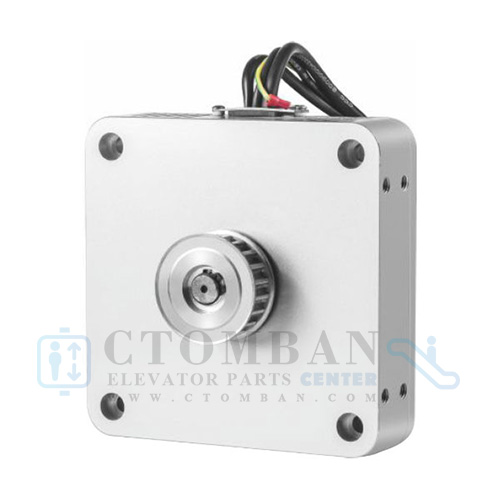

PM6182057 |
| Foto |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Size mm |
140*140*56 |
150*150*94 |
140*140*70 |
140*140*77 |
160*160*65 |
| Rated Current A |
0.6 |
1 |
0.6 |
1 |
0.8 |
| Rated Wat W |
105 |
157 |
68 |
94 |
94 |
| Rated Torque N.M |
2 |
5 |
3.6 |
5 |
5 |
| Rated Speed rpm |
500 |
300 |
180 |
150 |
180 |
| Rated Fre hz |
83.3 |
40 |
30 |
30 |
94 |
| Poles |
20 |
16 |
20 |
20 |
20 |
| Workings Type |
40%(S3 on 6s off 9s ) |
| Classifed IP |
IP65 |
| Insulation Grade |
F |
| Encoder type |
A/B/C/D/E/H |
| Sprocket |
Teeth Type |
5M |
| Teeth Number |
28/19/16 |
| Teeth Width mm |
17/13 |
| Configure sprocket belt |
HTD50-16 , HTD5M-26 , HTD8M-22 |
| Character |
High efficiency, Multi-directional instalation , Dustproof oil proof, High temperature resistance,
long life, F grage insulation grade, IP65 protection grade |
| Insulation Resistance |
>=100mΩ (cold) |
| Pressure Resistance |
1500V, 1min No breakdown |
| No-load noise value |
<=48dB |
| Unload Level & Vertical V |
<=0.45mm/s |
| Cooperated Client |
THYSSEN. OTIS.WITTUR. XIZI. VEGA. SYNEY. KONNY,FUJITEC, MIDEA, BST |

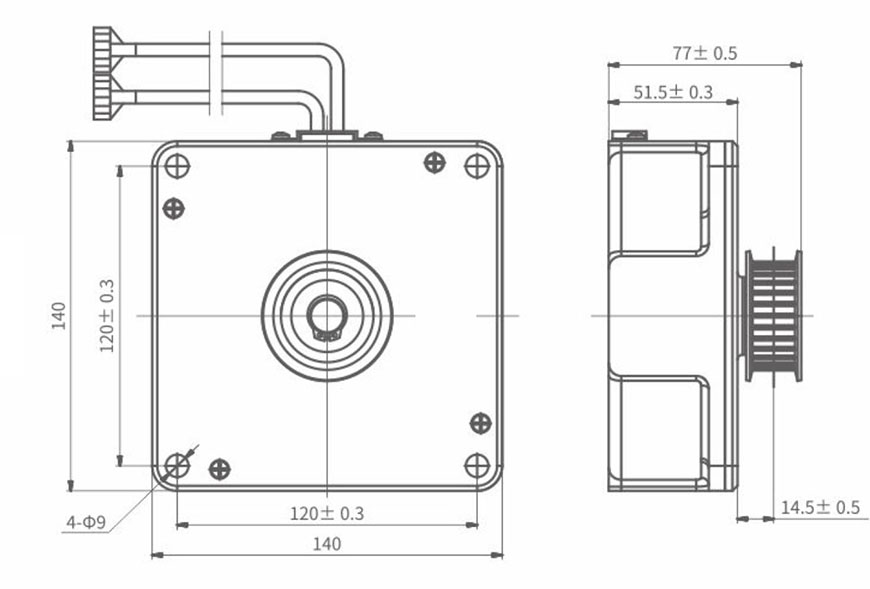

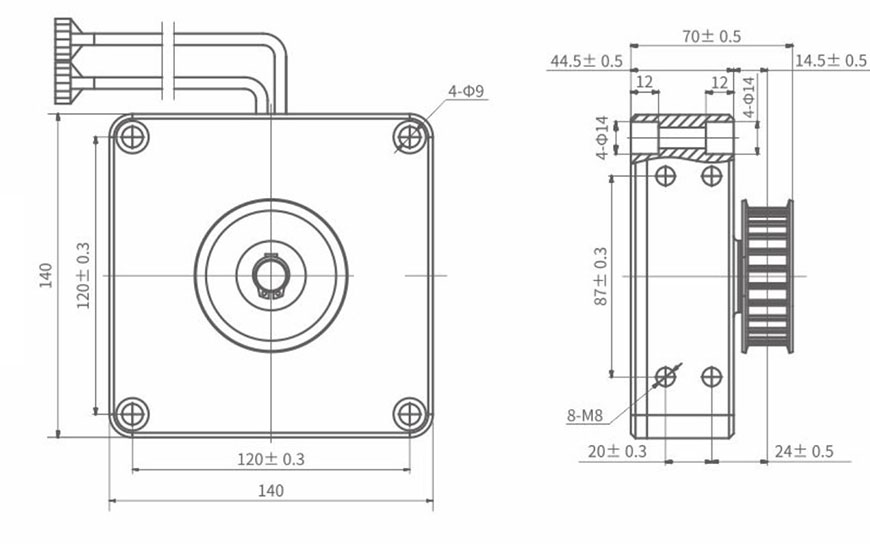

| PM5182027B ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

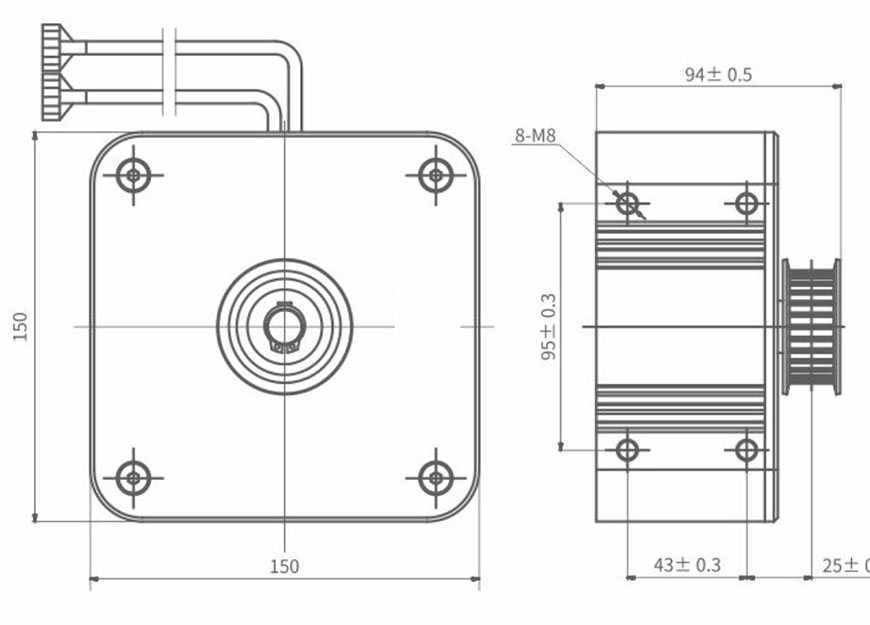

| PM6181657 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

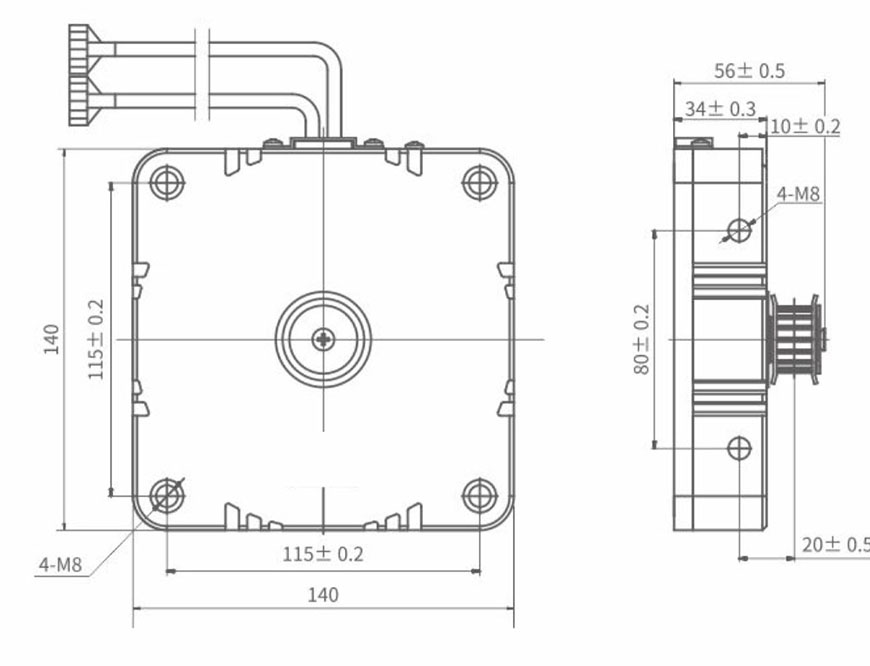

| PM5182047 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

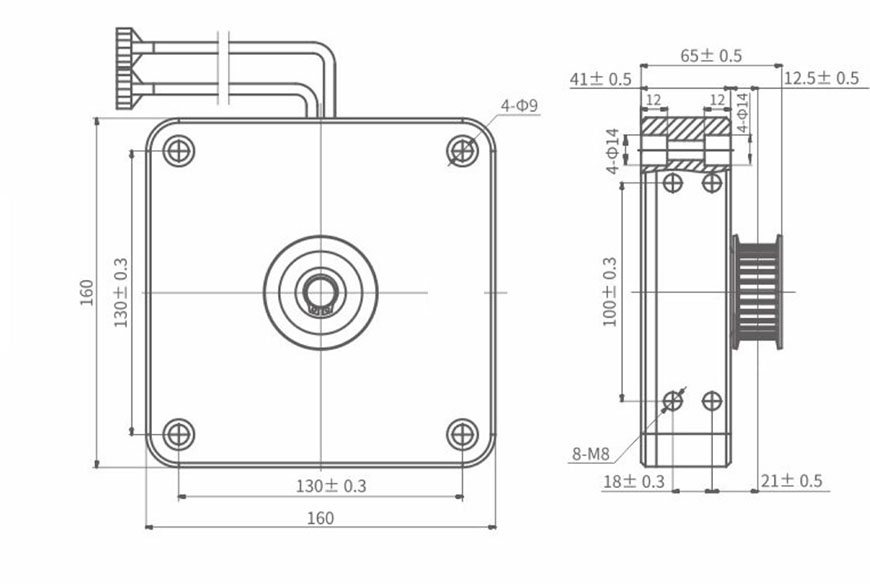

| PM5182056D ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
