Permanent Magnet Synchronous Door Motors
| Model |

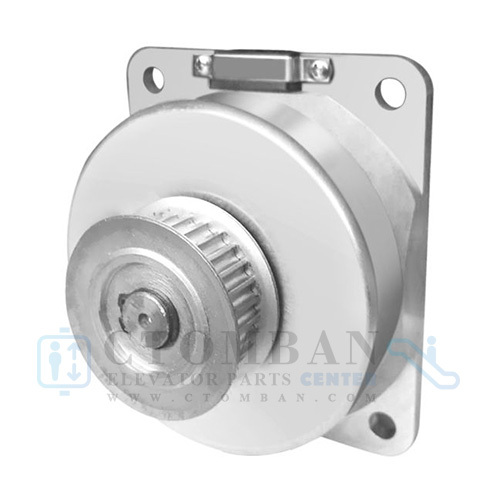

PM3121422 |

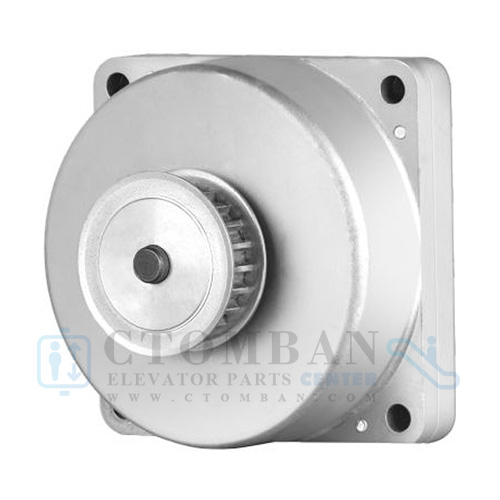

PM5121437YC |

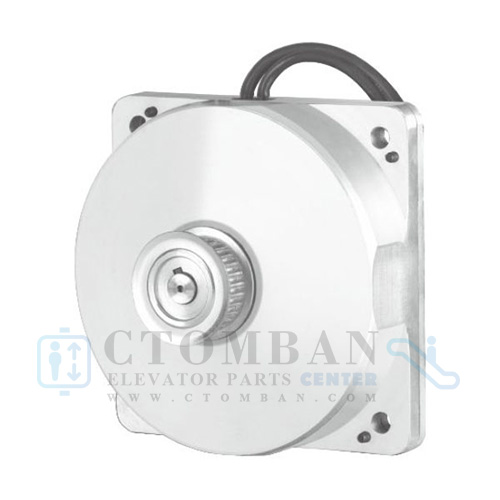

PM6182049 |
PM6182059 |
| Foto |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Size mm |
120*120*63 |
160*130*88 |
160*160*67.5 |
| Rated Current A |
0.8 |
0.8 |
1 |
1.5 |
| Rated Wat W |
28 |
60 |
90 |
135 |
| Rated Torque N.M |
1.5 |
3 |
3.5 |
4.9 |
| Rated Speed rpm |
180 |
190 |
240 |
260 |
| Rated Fre hz |
21 |
22.17 |
40 |
43.3 |
| Poles |
14 |
14 |
20 |
| Workings Type |
40%(S3 on 6s off 9s ) |
| Classifed IP |
IP65 |
| Insulation Grade |
F |
| Encoder type |
A/B/C/D/E/H |
| Sprocket |
Teeth Type |
5M |
8M |
8M |
|
| Teeth Number |
28 |
21 |
28/19/16 |
| Teeth Width mm |
17 |
17 |
17/13 |
| Configure sprocket belt |
HTD50-16 , HTD5M-26 , HTD8M-22 |
| Character |
High efficiency, Multi-directional instalation , Dustproof oil proof, High temperature resistance,
long life, F grage insulation grade, IP65 protection grade |
| Insulation Resistance |
>=100mΩ (cold) |
| Pressure Resistance |
1500V, 1min No breakdown |
| No-load noise value |
<=48dB |
| Unload Level & Vertical V |
<=0.45mm/s |
| Cooperated Client |
THYSSEN. OTIS.WITTUR. XIZI. VEGA. SYNEY. KONNY,FUJITEC, MIDEA, BST |

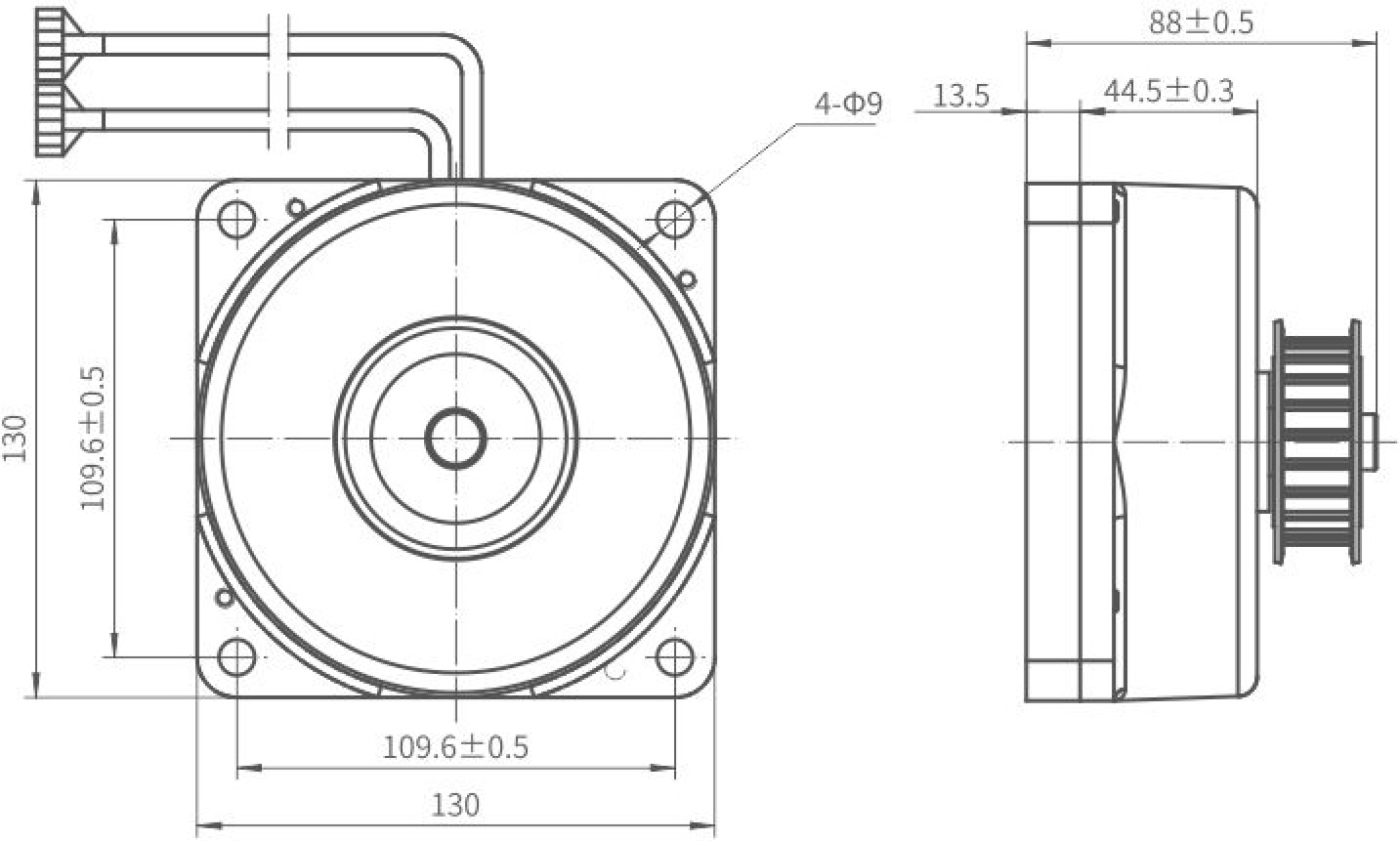

| PM3121422 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

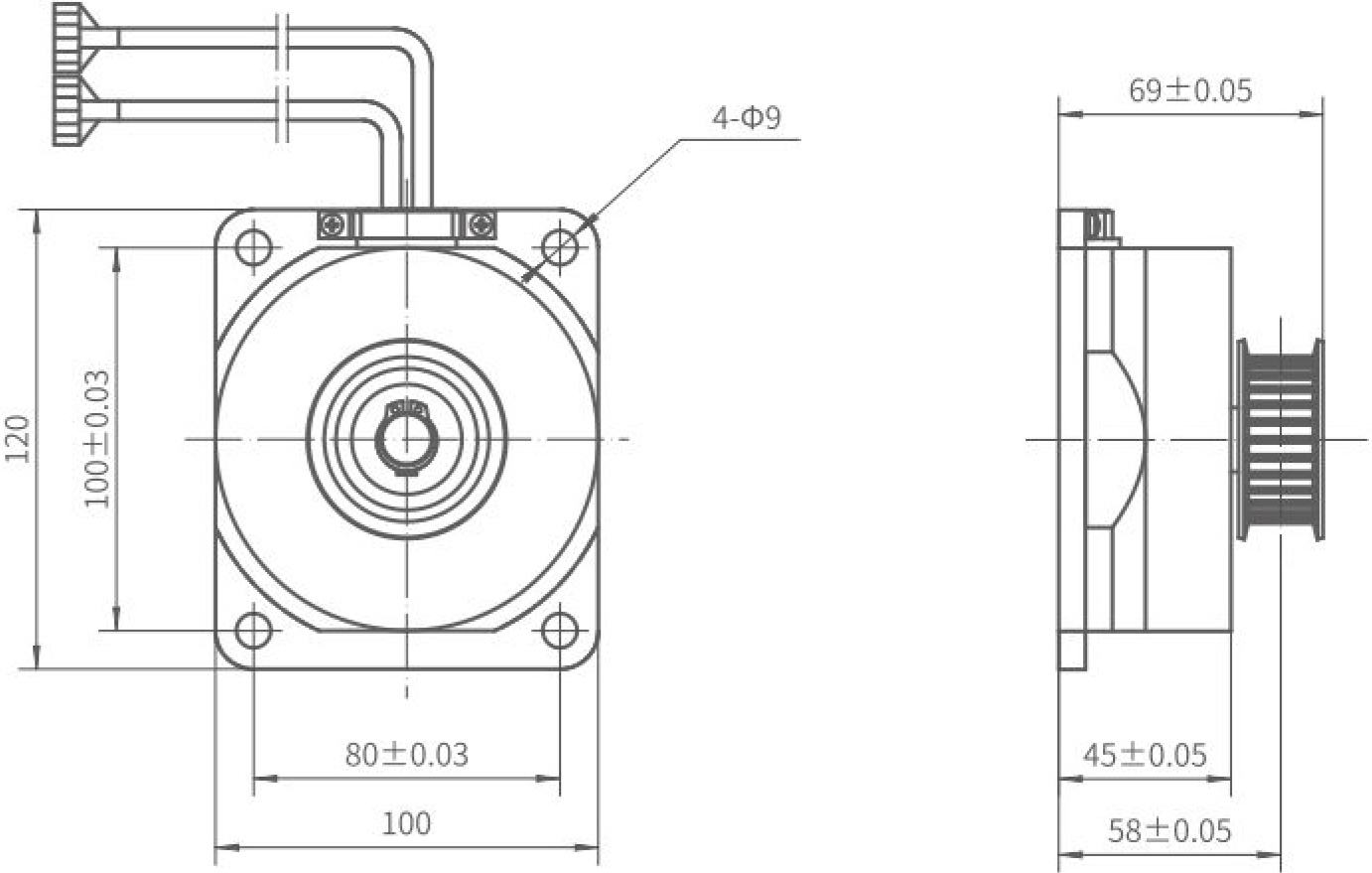

| PM5121437YC ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

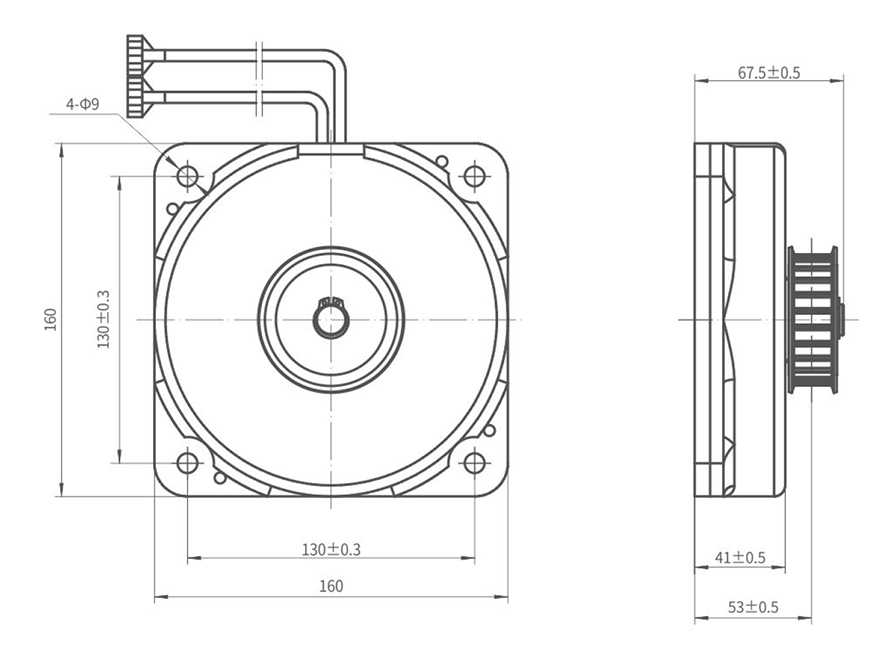

| PM6182049&PM6182059 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
