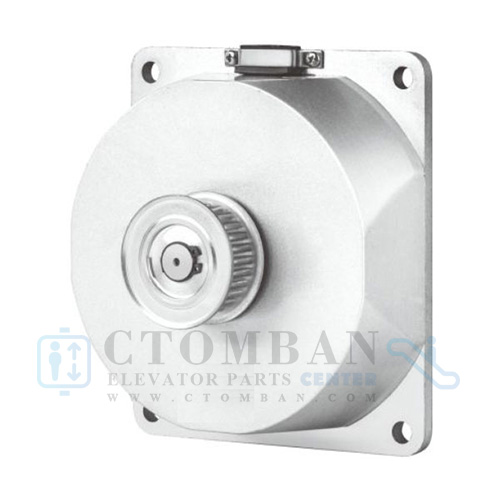

Permanent Magnet Synchronous Door Motors
| Model |
PM5182021 |
PM5182025 |
PM5182026 |
PM5182029 |
PM5182042 |
PM5182046 |
PM5182049 |
PM5182052 |
PM5182056 |
PM5182059 |
| Foto |
|
|
|
|
|
|
|
|
|
|
|
| Size mm |
140*140*64 |
140*140*70 |
140*140*77 |
| Rated Voltage |
|
24 |
80 |
110 |
220 |
36 |
100 |
220 |
36 |
100 |
220 |
| Rated Current A |
1.5 |
0.5 |
1.5 |
0.5 |
1.8 |
0.6 |
0.8 |
2 |
0.8 |
1 |
| Rated Wat W |
43 |
43 |
120 |
120 |
68 |
68 |
188 |
94 |
94 |
260 |
| Rated Torque N.M |
2.3 |
2.3 |
2.3 |
2.3 |
3.6 |
3.6 |
3.6 |
5 |
5 |
5 |
| Rated Speed rpm |
180 |
180 |
500 |
500 |
180 |
180 |
500 |
180 |
180 |
500 |
| Rated Fre hz |
30 |
30 |
83.3 |
83.3 |
30 |
30 |
83.3 |
30 |
30 |
83.3 |
| Poles |
20 |
| Workings Type |
40%(S3 on 6s off 9s ) |
| Classifed IP |
IP65 |
| Insulation Grade |
F |
| Encoder type |
A/B/C/D/E/H |
| Sprocket |
Teeth Type |
5M |
| Teeth Number |
28/19/16 |
| Teeth Width mm |
17/13 |
| Configure sprocket belt |
HTD50-16 , HTD5M-26 , HTD8M-22 |
| Character |
High efficiency, Multi-directional instalation , Dustproof oil proof, High temperature resistance,
long life, F grage insulation grade, IP65 protection grade |
| Insulation Resistance |
>=100mΩ (cold) |
| Pressure Resistance |
1500V, 1min No breakdown |
| No-load noise value |
<=48dB |
| Unload Level & Vertical V |
<=0.45mm/s |
| Cooperated Client |
THYSSEN. OTIS.WITTUR. XIZI. VEGA. SYNEY. KONNY,FUJITEC, MIDEA, BST |

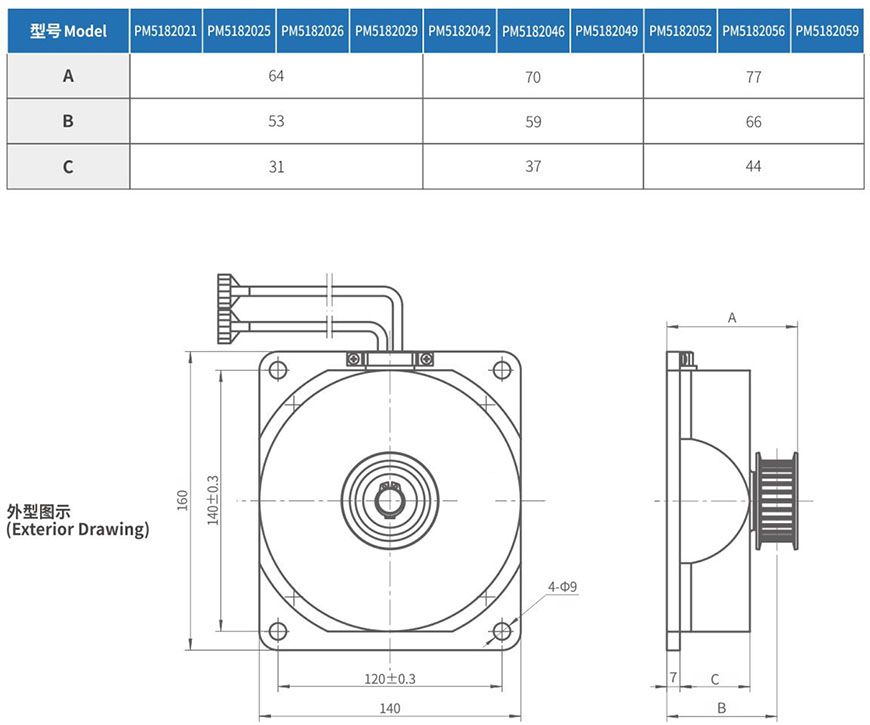

| PM5182021 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
