Permanent Magnet Synchronous Door Motors
| Model |

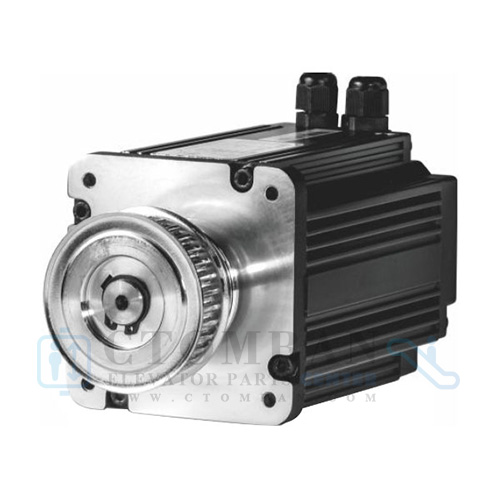

PM3121035 |

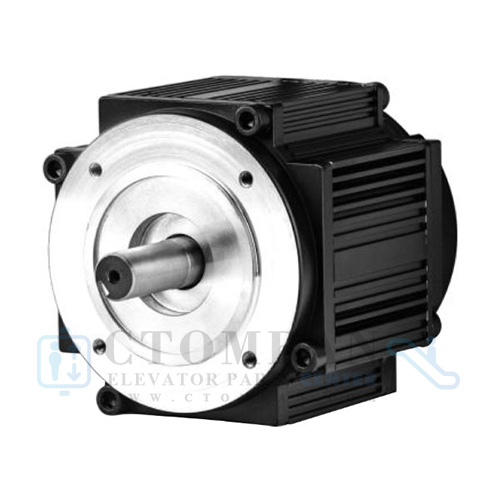

PM624849 |

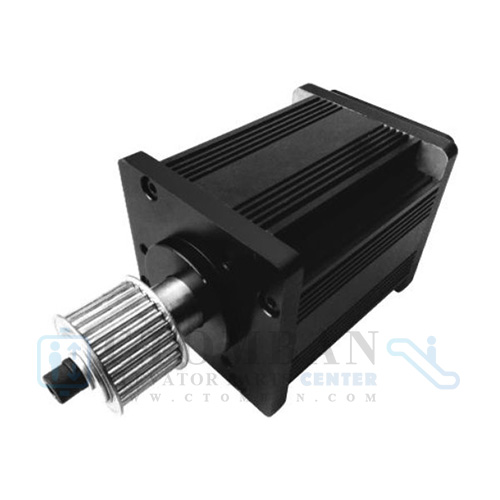

PM3121046 |
| Foto |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Size mm |
80*80*151.5 |
127*127*165 |
94*110*190 |
| Rated Voltage |
|
54 |
220 |
100 |
| Rated Current A |
1.1 |
2.2 |
1.1 |
| Rated Wat W |
50 |
500 |
75 |
| Rated Torque N.M |
2.7 |
2.2 |
3.6 |
| Rated Speed rpm |
180 |
180 |
195 |
| Rated Fre hz |
15 |
50 |
16.25 |
| Poles |
10 |
8 |
10 |
| Workings Type |
40%(S3 on 6s off 9s ) |
| Classifed IP |
IP65 |
| Insulation Grade |
F |
| Encoder type |
A/B/C/D/E/H |
| Sprocket |
Teeth Type |
5M |
5M |
8M |
| Teeth Number |
32 |
|
16 |
| Teeth Width mm |
13 |
|
22 |
| Configure sprocket belt |
HTD50-16 , HTD5M-26 , HTD8M-22 |
| Character |
High efficiency, Multi-directional instalation , Dustproof oil proof, High temperature resistance,
long life, F grage insulation grade, IP65 protection grade |
| Insulation Resistance |
>=100mΩ (cold) |
| Pressure Resistance |
1500V, 1min No breakdown |
| No-load noise value |
<=48dB |
| Unload Level & Vertical V |
<=0.45mm/s |
| Cooperated Client |
THYSSEN. OTIS.WITTUR. XIZI. VEGA. SYNEY. KONNY,FUJITEC, MIDEA, BST |

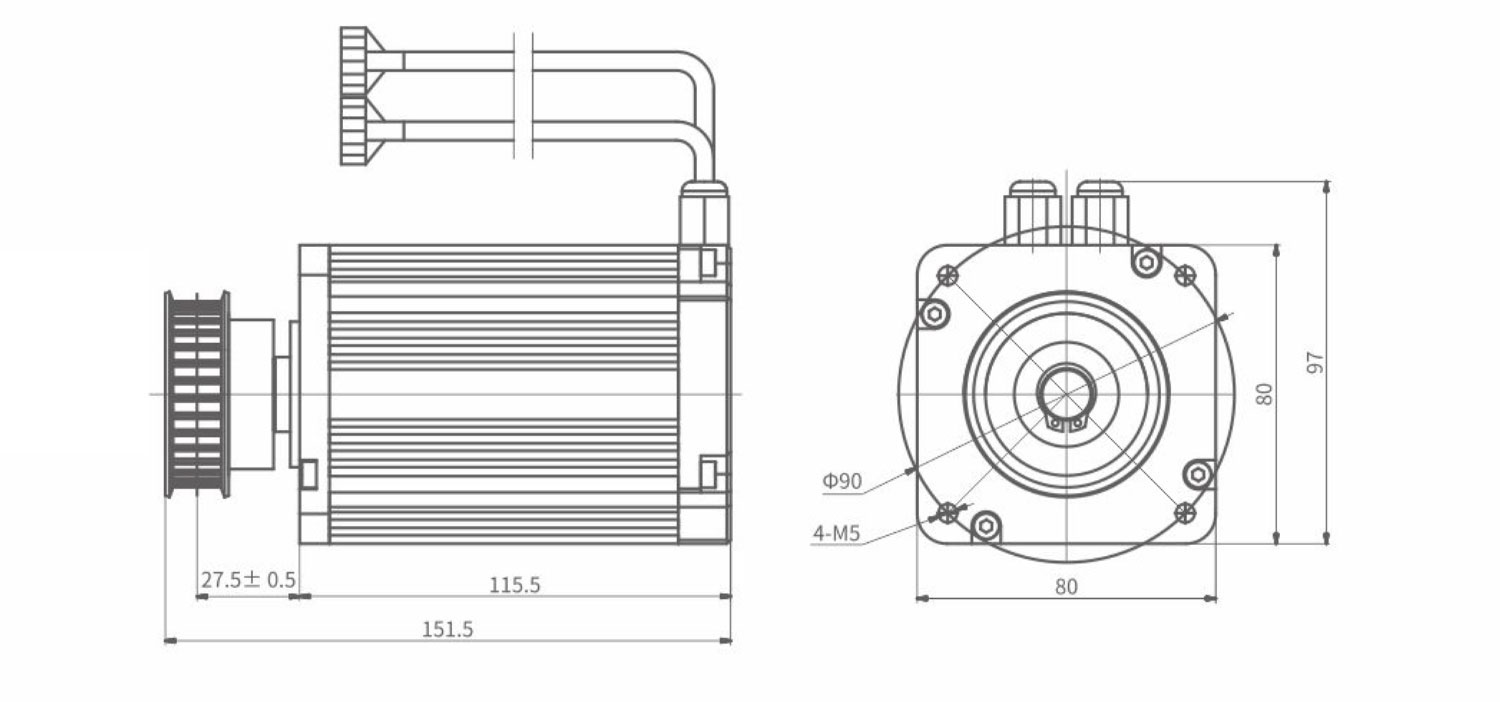

| PM3121035 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

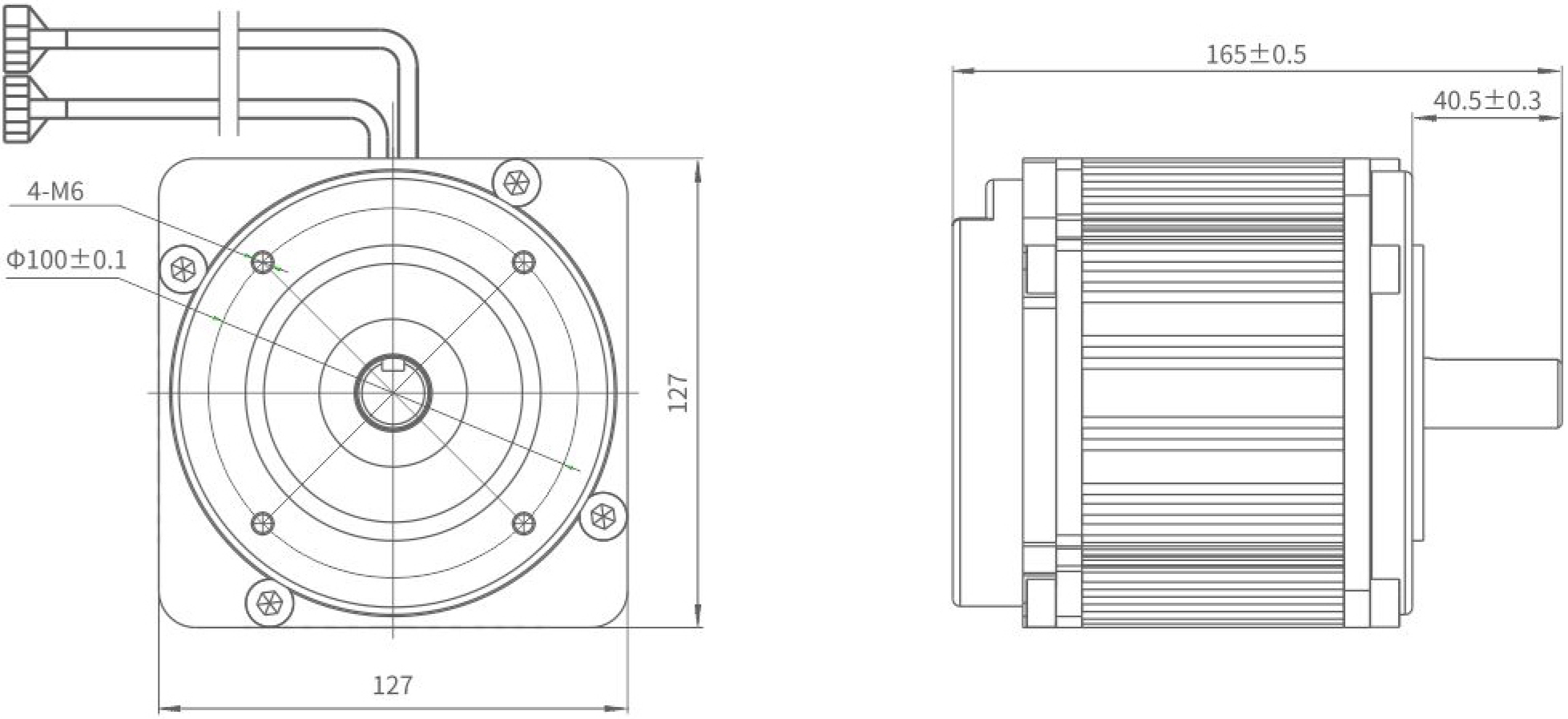

| PM624849 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

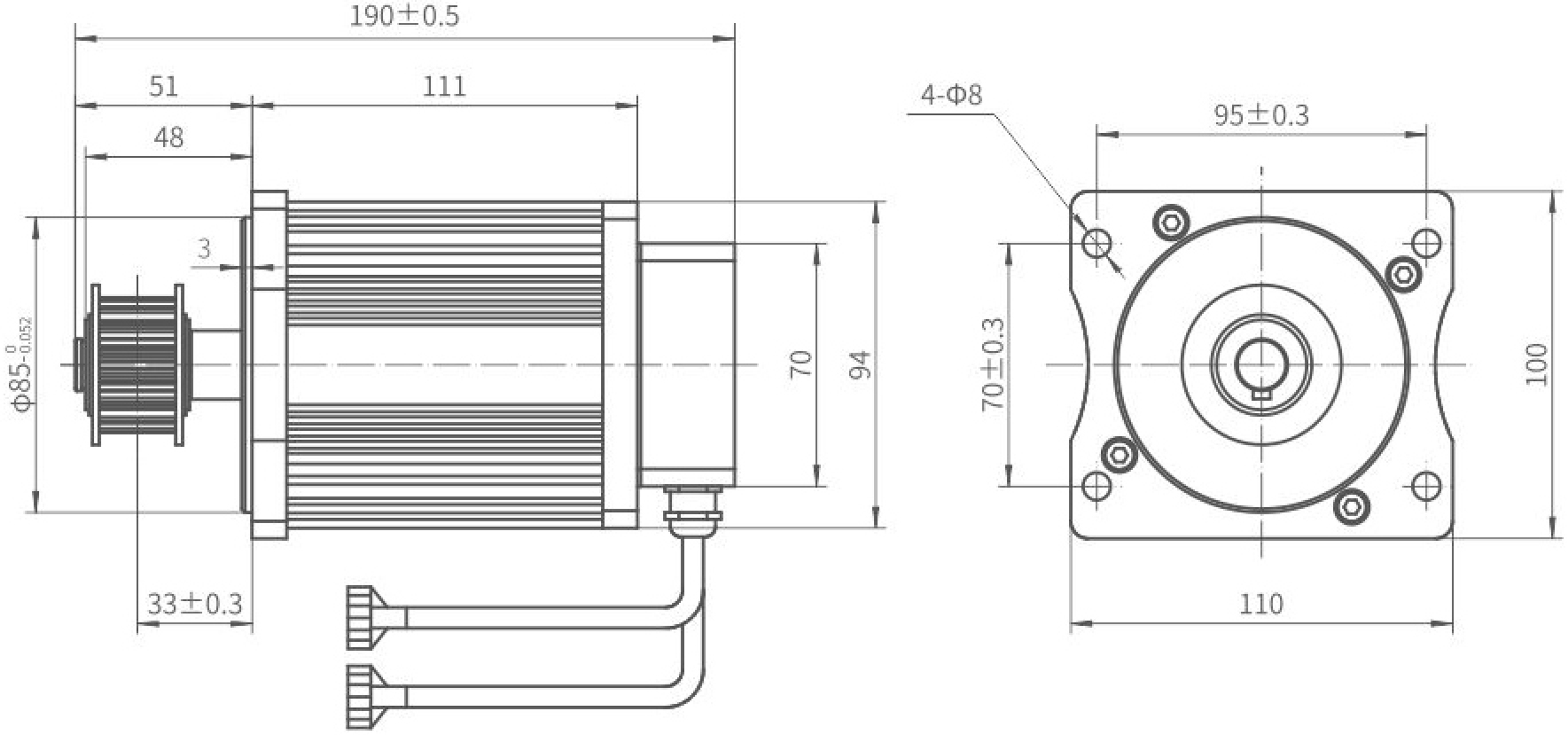

| PM3121046 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
