Permanent Magnet Synchronous Door Motors
| Model |
PM5181636 |
PM5181646 |
PM5181656 |

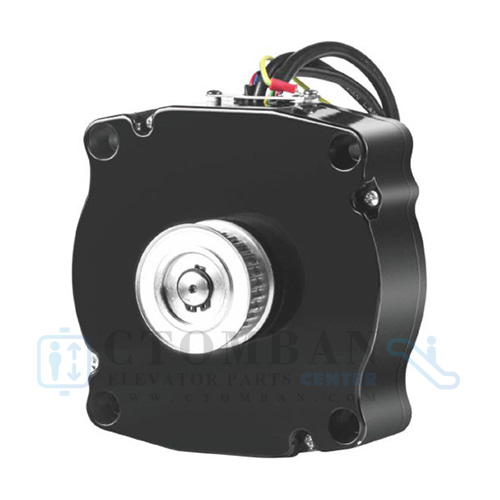

| Foto |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Size mm |
140*140*70 |
| Rated Voltage |
|
90 |
100 |
65 |
| Rated Current A |
0.6 |
0.7 |
0.9 |
| Rated Wat W |
57 |
73 |
100 |
| Rated Torque N.M |
2.7 |
3.5 |
5 |
| Rated Speed rpm |
200 |
200 |
200 |
| Rated Fre hz |
26.7 |
26.7 |
26.7 |
| Poles |
16 |
16 |
16 |
| Workings Type |
40%(S3 on 6s off 9s ) |
| Classifed IP |
IP65 |
| Insulation Grade |
F |
| Encoder type |
A/B/C/D/E/H |
| Sprocket |
Teeth Type |
5M |
5M |
8M |
| Teeth Number |
32 |
|
16 |
| Teeth Width mm |
13 |
|
22 |
| Configure sprocket belt |
HTD50-16 , HTD5M-26 , HTD8M-22 |
| Character |
High efficiency, Multi-directional instalation , Dustproof oil proof, High temperature resistance,
long life, F grage insulation grade, IP65 protection grade |
| Insulation Resistance |
>=100mΩ (cold) |
| Pressure Resistance |
1500V, 1min No breakdown |
| No-load noise value |
<=48dB |
| Unload Level & Vertical V |
<=0.45mm/s |
| Cooperated Client |
THYSSEN. OTIS.WITTUR. XIZI. VEGA. SYNEY. KONNY,FUJITEC, MIDEA, BST |

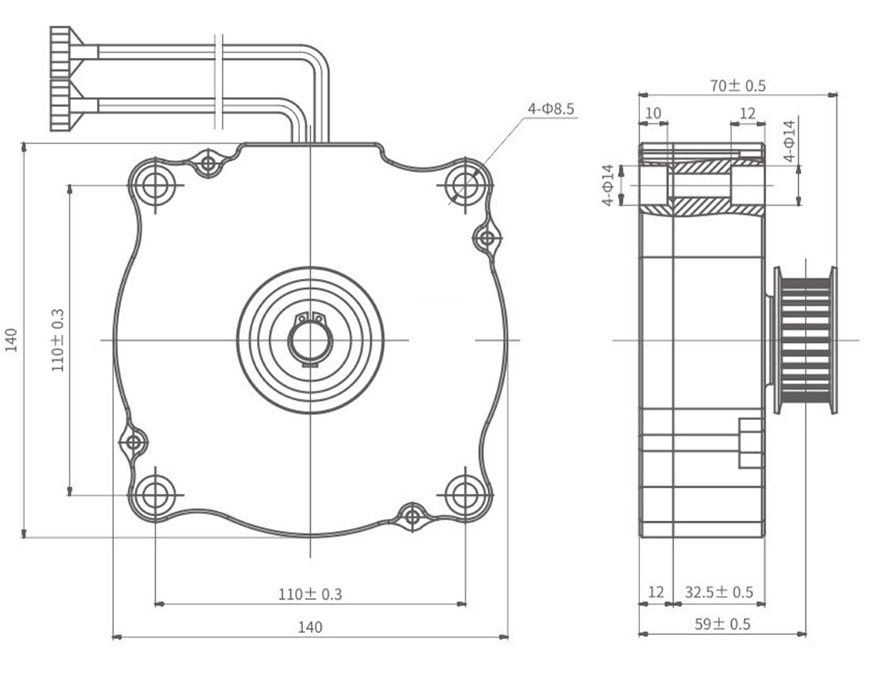

| PM5181636*46*56 ↓ Layout size |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
