Hospital elevators descriptions with small machine room:
Above FOB China Port price is based on standard Design included
Full Stainless Cabin and Painted Door,One entrace,Monarch/Step system .
Small Machine Room Available Specifications
| Capacity | Speed | Cabin | Door opening | Opening Way | Shaft | Shaft | Overhead Height | Pit Depth | ||||
| CW | CD | JJ | HH | W | D | OH | PH | |||||
| 2000 | 0.5 | 1800 | 2300 | 1500 | 2100 | 2 Panels Center Opening | 2650 | 2800 | 4200 | 1400 | ||
| 3000 | 0.5 | 2000 | 2800 | 2000 | 2100 | 4 Panels Center Opening | 3400 | 3300 | ||||

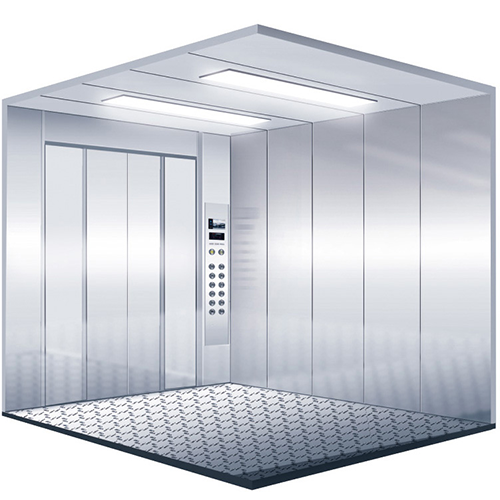

| Product Name | VVVF Gearless Traction Freight Elevator With Good Price |
| Control | All-in-one 32-bit Micro-processor VVVF control |
| Traction | Permanent Magnet Synchronous Gear-less traction machine |
| Standard | CE, SASO, CCC, GOST, ISO9001, OHSMS18001 |
| Loading: | 1600kg, 2000kg |
| Speed | 0.5m/s, |
| Material | All #304 top grade stainless steel hairline, plus mirror & etching finish(optional) |
| Application | residential building, office building, hotel, school, household etc. |
| Standard Cabin | |
| Ceiling | 304 mirror st.steel+LED light;painted +mirror st.steel+LED light; |
| Car Wall | 304 hairline st.steel |
| controlling box | Integrated controlling box, 304 hairline st.steel |
| Floor | PVC / Client Make |
| Landing door and door cover | first floor hairline st.steel, others floor painted |
| SerialNo. | Function Name | Serial No. | Function Name |
| 1 | Full-automatic sorting operation | 9 | Light curtain protecting of the door |
| 2 | Door closing blocking automatic return function | 10 | Short-circuit protection of foor lock |
| 3 | Emergency electric driving of machine room | 11 | Running door lock breakage protection |
| 4 | Automatic leveling | 12 | Delay protection of car door closing |
| 5 | Automatic return to base station in case of fire larm | 13 | Mis-operation removed |
| 6 | Automatic control of lighting fan inside the lift car | 14 | Emergency lighting in thr car in case of power failure |
| 7 | Overheating protecting of driver divice | 15 | Five way communication device |
| 8 | Unattended to automatically return to base station | 16 | Upward and downward running overspeed protection |
| Deilver Optional | Deliver Time | Deliver Service | Client Provide |
| DHL / FedEx | 3-5 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| UPS / TNT | 5-10 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| EMS | 10-15 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| AIR | 5-8 Workding Days | Factory to Airport | Client Airport Name |
| SEA | 25-45 Workding Days | Factory to Airport | Client Seaport Name |
