Passenger/Hospital/Panorama elevators descriptions with small machine room:
Above price is based on standard Design included
Full Stainless Cabin, First Stainless Door, other Painted Door and ARD and Handrail.
Small Machine Room Available Specifications
|
Persons |
Rated Capacity(KG) |
Rated Speed (m/s) |
Model Number |
Inner Dimension (mm) |
Size of Door(mm) |
Hoistway Size(mm) |
Machine Room Dimension |
|
6 |
450 |
1.0-1.75 |
CTB-OM-PE450 |
1300×950 |
700×2100 |
1800×1650 |
1800×2000×2500 |
|
8 |
630 |
1.0-1.75 |
CTB-OM-PE630 |
1400×1100 |
800×2100 |
2000×1750 |
2000×2000×2500 |
|
10 |
800 |
1.0-1.75 |
CTB-OM-PE800 |
1400×1350 |
800×2100 |
2000×2000 |
2000×2000×2500 |
|
12 |
900 |
1.0-1.75 |
CTB-OM-PE900 |
1400×1500 |
900×2100 |
2000×2200 |
2000×2200×2500 |
|
13 |
1000 |
1.0-3.0 |
CTB-OM-PE1000 |
1600×1400 |
900×2100 |
2200×2100 |
2200×2100×2500 |
|
15 |
1150 |
1.0-3.0 |
CTB-OM-PE1150 |
1600×1600 |
900×2100 |
2200×2300 |
2200×2300×2500 |
|
16 |
1250 |
1.0-3.0 |
CTB-OM-PE1250 |
1750×1600 |
1000×2100 |
2350×2300 |
2350×2300×2500 |
|
18 |
1350 |
1.0-3.0 |
CTB-OM-PE1350 |
1800×1650 |
1000×2100 |
2400×2400 |
2400×2400×2500 |
|
21 |
1600 |
1.0-3.0 |
CTB-OM-PE1600 |
1950×1750 |
1100×2100 |
2900×2300 |
2900×2300×2500 |
| Product Name | VVVF Gearless Traction Commercial/Residential Passenger Lifts Elevator With Good Price |
| Control | All-in-one 32-bit Micro-processor VVVF control |
| Traction | Permanent Magnet Synchronous Gear-less traction machine |
| Standard | CE, SASO, CCC, GOST, ISO9001, OHSMS18001 |
| Loading: | 320kg, 450kg, 630kg, 800kg, 1050kg, 1150kg, 1250kg, 1350kg, 1600kg, 2000kg |
| Speed | 1.0m/s, 1.6m/s, 1.75m/s, 2.0m/s ~ 4.0m/s |
| Material | All #304 top grade stainless steel hairline, plus mirror & etching finish(optional) |
| Application | residential building, office building, hotel, school, household etc. |

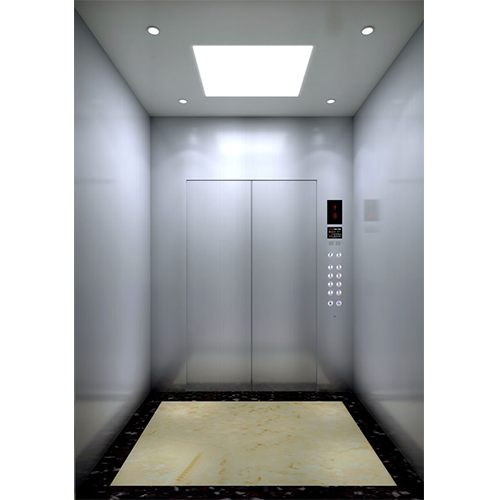

| Standard Cabin | |
| Ceiling | 304 mirror st.steel+LED light;painted +mirror st.steel+LED light; |
| Car Wall | 304 hairline st.steel |
| controlling box | Integrated controlling box, 304 hairline st.steel |
| Floor | PVC / Client Make |
| Landing door and door cover | first floor hairline st.steel, others floor painted |
| SerialNo. | Function Name | Serial No. | Function Name |
| 1 | Full-automatic sorting operation | 9 | Light curtain protecting of the door |
| 2 | Door closing blocking automatic return function | 10 | Short-circuit protection of foor lock |
| 3 | Emergency electric driving of machine room | 11 | Running door lock breakage protection |
| 4 | Automatic leveling | 12 | Delay protection of car door closing |
| 5 | Automatic return to base station in case of fire larm | 13 | Mis-operation removed |
| 6 | Automatic control of lighting fan inside the lift car | 14 | Emergency lighting in thr car in case of power failure |
| 7 | Overheating protecting of driver divice | 15 | Five way communication device |
| 8 | Unattended to automatically return to base station | 16 | Upward and downward running overspeed protection |
| Deilver Optional | Deliver Time | Deliver Service | Client Provide |
| DHL / FedEx | 3-5 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| UPS / TNT | 5-10 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| EMS | 10-15 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| AIR | 5-8 Workding Days | Factory to Airport | Client Airport Name |
| SEA | 25-45 Workding Days | Factory to Airport | Client Seaport Name |
