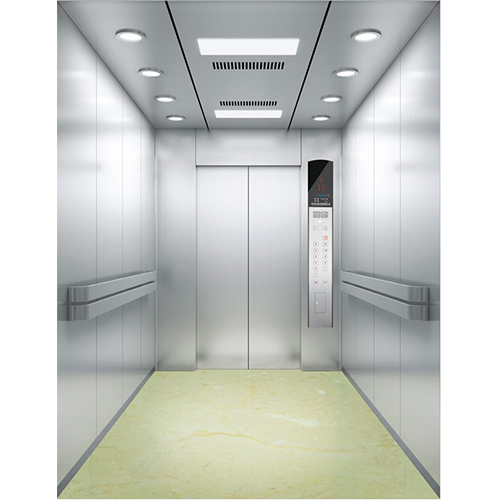

Hospital elevators descriptions with small machine room:
Above FOB China Port price is based on standard Design included
Full Stainless Cabin, First Stainless Door, other Painted Door and ARD and Handrail,One entrace,Monarch/Step system .
Small Machine Room Available Specifications
| Person | Capacity kgs | Speed m/s | Model # | Cabin Size | Door Size | Shaft Size | MR Size |
| 16 | 1250 | 1.0~2.5 | CTB-OM-HE1250 | 1100×2200 | 1200×2100 | 2000×2800 | 2000×2800×2500 |
| 21 | 1600 | 1.0~2.5 | CTB-OM-HE1600 | 1400×2400 | 1200×2100 | 2300×3000 | 2300×3000×2500 |
| Product Name | VVVF Gearless Traction Commercial/Residential Passenger Lifts Elevator With Good Price |
| Control | All-in-one 32-bit Micro-processor VVVF control |
| Traction | Permanent Magnet Synchronous Gear-less traction machine |
| Standard | CE, SASO, CCC, GOST, ISO9001, OHSMS18001 |
| Loading: | 320kg, 450kg, 630kg, 800kg, 1050kg, 1150kg, 1250kg, 1350kg, 1600kg, 2000kg |
| Speed | 1.0m/s, 1.6m/s, 1.75m/s, 2.0m/s ~ 4.0m/s |
| Material | All #304 top grade stainless steel hairline, plus mirror & etching finish(optional) |
| Application | residential building, office building, hotel, school, household etc. |
| Standard Cabin | |
| Ceiling | 304 mirror st.steel+LED light;painted +mirror st.steel+LED light; |
| Car Wall | 304 hairline st.steel |
| controlling box | Integrated controlling box, 304 hairline st.steel |
| Floor | PVC / Client Make |
| Landing door and door cover | first floor hairline st.steel, others floor painted |
| SerialNo. | Function Name | Serial No. | Function Name |
| 1 | Full-automatic sorting operation | 9 | Light curtain protecting of the door |
| 2 | Door closing blocking automatic return function | 10 | Short-circuit protection of foor lock |
| 3 | Emergency electric driving of machine room | 11 | Running door lock breakage protection |
| 4 | Automatic leveling | 12 | Delay protection of car door closing |
| 5 | Automatic return to base station in case of fire larm | 13 | Mis-operation removed |
| 6 | Automatic control of lighting fan inside the lift car | 14 | Emergency lighting in thr car in case of power failure |
| 7 | Overheating protecting of driver divice | 15 | Five way communication device |
| 8 | Unattended to automatically return to base station | 16 | Upward and downward running overspeed protection |
| Deilver Optional | Deliver Time | Deliver Service | Client Provide |
| DHL / FedEx | 3-5 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| UPS / TNT | 5-10 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| EMS | 10-15 Workding Days | Door to Door | Company Name : Address : Post Code: Tel Number: Consginee : |
| AIR | 5-8 Workding Days | Factory to Airport | Client Airport Name |
| SEA | 25-45 Workding Days | Factory to Airport | Client Seaport Name |
